Preconditioned Conjugate Gradient

A discussion of the Conjugate Gradient method is presented in Chapter 9 of the text. In class, we presented the following two algorithms for conjugate gradient (figure ) and preconditioned conjugate gradient (figure ).

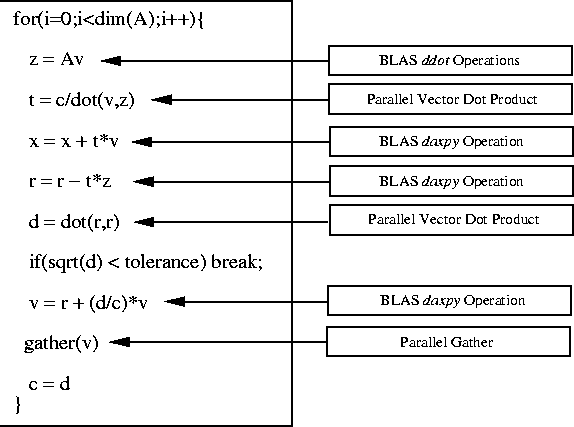

**Figure:** Iterative part of the conjugate gradient (CG) algorithm.
$\begin{figure} \centerline{\psfig{file=CG.eps,width=5.0in}} \end{figure}$

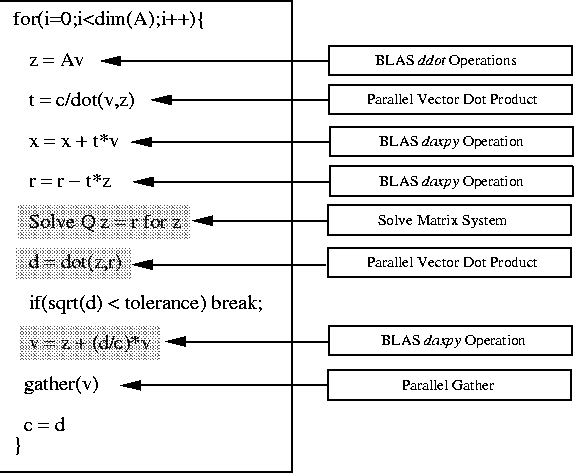

**Figure:** Iterative part of the preconditioned conjugate gradient (PCG) algorithm
$\begin{figure} \centerline{\psfig{file=PCG.eps,width=5.0in}} \end{figure}$
